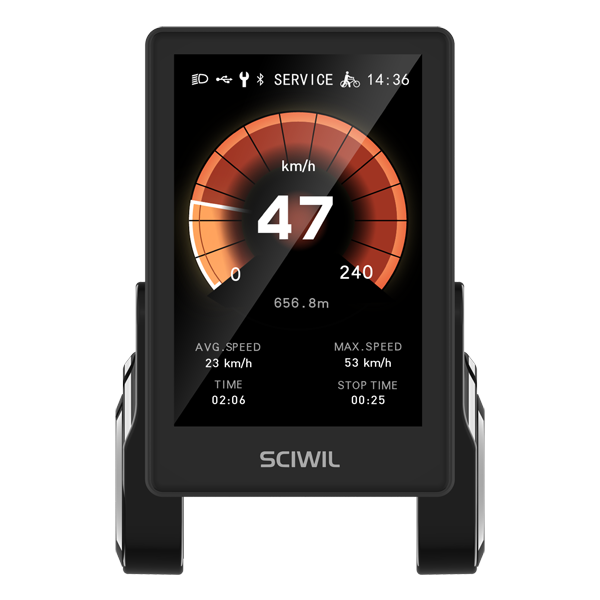

LCD Display SW-K61

  • Ultra-Slim All-Black Style
  • Color TFT LCD Screen Type, Anti-Glare, Vivid Even Under Sunlight
  • 3.5” Screen Size, suitable for e-MTB, e-City, Touring Bike, Hybrid Bike
  • Support Both CAN/UART Communication Type
  • Bluetooth 5.0 and USB Type-C Charge Port Supported
  • Multiple Functions: Speed/Distance/Power/Time Display/Headlight On/Off, Walk Mode, Light Sensor, Settings
  • Navigation Indication (Bluetooth version)
  • Wide Working Temperature Range: -20°C~60°C
  • Protection Rate: IP66

Download SW-M61 User Manual

Send Enquiry
ModelSW-K61
TypeTFT Color Screen
Screen Size3.5
Rotating Screen×
CommunicationCAN/UART
Voltage12V/24V/36V/48V/60V/72V
Handlebar Size22.2/25.4/
28.6/31.8
Cable Length250mm/Customize
Switching On/Off√
Mode√
PAS Level√
Throttle×
Headlight On/Off√
Light Sensor√
Walk Mode√
Cruise√
Password√
Auto-Off√
Bluetooth 5.0√
USB Charge5V 1A （Type-C）
Time√
Setting Menu√
MAX/AVG/CUR Speed√
TRIP/ODO√
Battery Level√
Error Code√
Power√
Working Temperature-20~60°C
Protection RatingIP66
CertificationCE, ROHS, EN13849, FCC

Size
