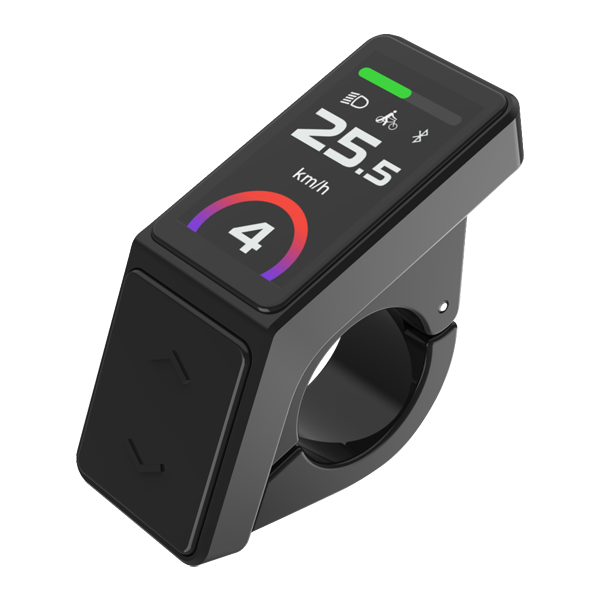

LCD Display SW-G32

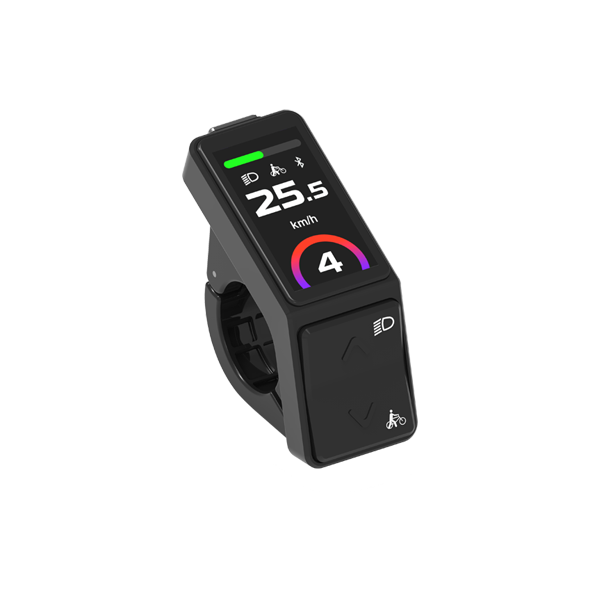

LCD Display SW-G32 - Image 2

LCD Display SW-G32

  • Delicate Mini Left-Mount Design
  • Color TFT LCD Screen Type, Anti-Glare, Vivid Even Under Sunlight
  • 1.47” Screen Size, suitable for Folding Bike, e-Cargo, e-Scooter, and Fat Tire Bike
  • Support Both CAN/UART Communication Type
  • Bluetooth 5.0 and NFC Supported
  • Multiple Functions: Speed/Distance/Power/Time Display, Headlight On/Off, Walk Mode, Settings
  • Wide Working Temperature Range: -20°C~60°C
  • Protection Rate: IP66
Send Enquiry
ModelSW-G32
TypeTFT Color Screen
Screen Size1.47
Rotating Screen×
CommunicationCAN/UART
Voltage12V/24V/36V/48V/60V/72V
Handlebar Size22.2
Cable Length250mm/Customize
Switching On/Off√
Mode√
PAS Level√
Throttle×
Headlight On/Off√
Light Sensor×
Walk Mode√
Cruise√
Password√
Auto-Off√
Bluetooth 5.0√
USB Charge×
Time√
Setting Menu√
MAX/AVG/CUR Speed√
TRIP/ODO√
Battery Level√
Error Code√
Power√
Working Temperature-20~60°C
Protection RatingIP66
CertificationCE, ROHS, EN13849, FCC

Size
