| Model | K60 |
| Type | TFT Color Screen |
| Screen Size | 3.5 |
| Rotating Screen | √ |
| Communication | CAN/UART |
| Voltage | 12V/24V/36V/48V/60V/72V |
| Handlebar Size | 22.2/25.4/28.6/31.8 |
| Cable Length | 250mm/Customized |
| Switching On/Off | √ |
| Mode | √ |
| PAS Level | √ |
| Throttle | × |
| Headlight On/Off | √ |
| Light Sensor | √ |
| Walk Mode | √ |
| Cruise | √ |
| Password | √ |
| Auto-Off | √ |
| Bluetooth 5.0 | √ |
| USB Charge | 5V 1A （Type-C） |
| Time | √ |
| Setting Menu | √ |
| MAX/AVG/CUR Speed | √ |
| TRIP/ODO | √ |
| Battery Level | √ |
| Error Code | √ |
| Power | √ |
| Working Temperature | -20~60°C |
| Protection Rating | IP66 |
| Certification | CE, ROHS, EN13849, FCC |

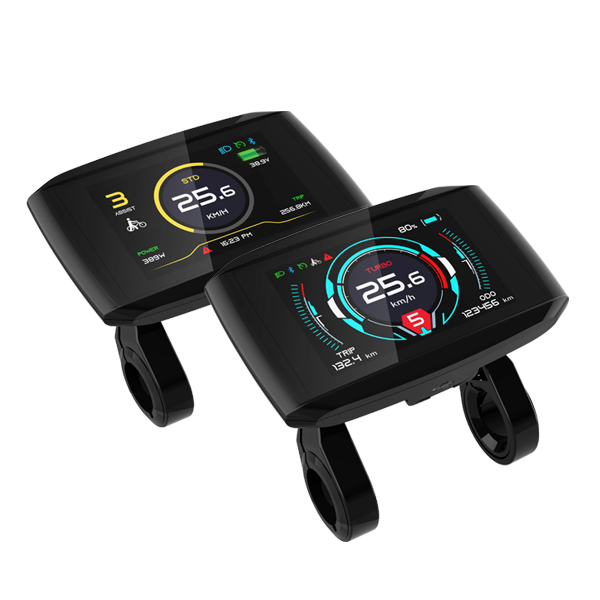

LCD Display SW-K60
- Smooth Horizontal Display Style
- Color TFT LCD Screen Type, Vivid Even Under Sunlight
- 3.5” Screen Size, suitable for e-MTB, e-Cargo, Fat Tire Bike and Cruiser Bike
- Support Both CAN/UART Communication Type
- Bluetooth 5.0 and USB Type-C Charge Port Supported
- Multiple Functions: Speed/Distance/Power/Time Display/Headlight On/Off, Walk Mode, Light Sensor, Settings
- Wide Working Temperature Range: -20°C~60°C
- Protection Rate: IP66
Size
| Dimension A | 115.0mm |
| Dimension B | 74.0mm |
| Dimension C | 80.0mm |
| Dimension D | Ø 22.2mm |
| Dimension E | 84.7mm |
| Dimension F | 89.0mm |
| Dimension G | 3.5" inch |
| Dimension A | 74.0mm |
| Dimension B | 115.0mm |
| Dimension C | 80.0mm |
| Dimension D | Ø 22.2mm |
| Dimension E | 74.0mm |
| Dimension F | 115.0mm |
| Dimension G | 3.5" inch |
