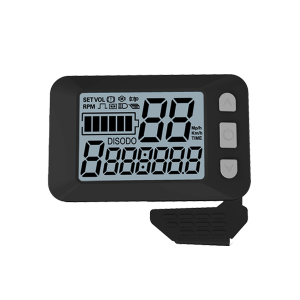

LCD Display EN06

  • Streamlined Left-Mount Design
  • VA Segment Screen Type, Vivid Even Under Sunlight
  • 2.0” Screen Size, suitable for Folding Bike, e-Cargo, e-Scooter and Fat Tire Bike
  • Support UART Communication Type
  • USB Type-A Charge Port Supported
  • Multiple Functions: Speed/Distance/Power/Time Display/Headlight On/Off, Walk Mode, Settings
  • Wide Working Temperature Range: -20°C~60°C
  • Protection Rate: IP65

Download EN06 User Manual

Send Enquiry
ModelEN06
TypeVA Segment
Screen Size2
Rotating Screen×
CommunicationUART
Voltage24V/36V/48V/60V
Handlebar Size22.2
Cable Length×
Switching On/Off
Mode
PAS Level
Throttle×
Headlight On/Off
Light Sensor×
Walk Mode
Cruise
Password
Auto-Off
Bluetooth 5.0×
USB Charge5V 500mA (Type-A)
Time
Setting Menu
MAX/AVG/CUR Speed
TRIP/ODO
Battery Level
Error Code
Power×
Working Temperature-20~60°C
Protection RatingIP65
CertificationCE, ROHS, EN13849, FCC

Size

Dimension A60.1mm
Dimension B45.5mm
Dimension C46.5mm
Dimension DØ 22.2mm
Dimension E35.1mm
Dimension F46.1mm
Dimension G1.9" Inch
